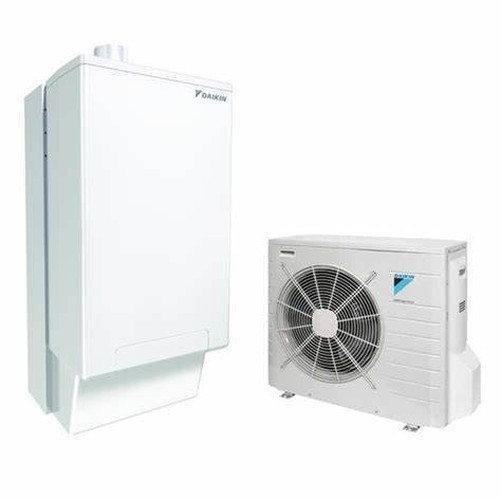

Daikin Altherma R Hybrid 8 KW Hybrid Heat Pump + Gas Boiler

Daikin Altherma R Hybrid 8 KW Hybrid Heat Pump + Gas Boiler

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.

daikin Ehyhbh08aav32 - Hybrid interior unit with heat pump for Altherma systems

The daikin Ehyhbh08aav32 unit is an internal component of the Altherma hybrid system, designed to offer energy efficiency heating solutions by combining an air-water heat pump with a gas condensing boiler. Ideal for residential applications in existing buildings, it guarantees high comfort and flexibility in the use of energy sources.

Main features:

• Hybrid technology with automatic management between heat pump and gas boiler

• Ideal for renovations with high temperature radiators (up to 80 ° C)

• High energy efficiency and savings on operating costs

• Compatibility with daikin control systems and remote management

• Compact wall installation, reduced dimensions

Technical specifications:

• Model: Ehyhbh08aav32

• Power voltage: 230 V / 1 Ph / 50 Hz

• Dimensions (HXLXP): 902 x 450 x 164 mm

• Weight: about 31 kg

• Acqua scope (max): 23.5 l/min

• Sound pressure: 28 DBA (at 1 m)

• Maximum water temperature sent: 80 ° C

• External temperature interval: from -25 ° C to +35 ° C

daikin Evlq08CAV3 - EXTERNAL UNITA AROTH -WATER HEAT PUMP for Altherma Hybrid system

The daikin Evlq08CAV3 external unit is designed for residential applications in the daikin Altherma hybrid systems. Use air-water heat pump technology to provide heating and domestic hot water efficiently, exploiting aerothermal energy. It is compatible with internal hybrid modules of the Ehyhbh -Av32 series and boiler modules of the Ehykomb series.

Main features:

• High efficiency air-water heat pump

• Silent and reliable operation

• Compatible with hybrid systems for optimal energy saving

• External installation resistant to the weather

• Inverter technology for continuous modulation of power

Technical specifications:

• Model: Evlq08cav3

• Power voltage: 230 V / 1 Ph / 50 Hz

• Heating capacity (nominal): 8.0 kW

• Refrigerant fluid: r410a

• Operating external air temperature: from -25 ° C to +35 ° C

• Dimensions (HXLXP): about 735 x 936 x 350 mm

• Weight: about 61 kg

• Sound pressure: about 48 DBA

• Degree of protection: IPX4

daikin Ehykomb33AA2 - Condensing Combiboiler and hybrid module for daikin Altherma system

The daikin Ehykomb333AA2 model is a 33 kW "Combiboiler" condensing boiler, designed to integrate with the daikin Altherma R Hybrid system. This module efficiently combines gas technology with air -water heat pump to provide instantaneous heating and production of domestic hot water.

Main features:

• Hybrid technology: combines air -water heat pump and condensing gas

• Automatic priority of the most convenient energy source based on external temperature, rates and thermal load

• Perfect for renovations with high temperature radiators (up to 80 ° C)

• Compact wall installation with quick connections

Technical specifications:

• Model: Ehykomb33AA2

• Type: air -water combiboiler + gas condensation

• Nominal heating power: 33 kW

• Healthcare hot water capacity: approx. 15 l/min

• Energy class: ACS A, Heating A +++

• Fuel: methane (G20, G25, G31)

• Dimensions (LXPXH): 450 × 240 × 710 mm

• Weight: about 36 kg

• Heating water temperature: from 15 ° C to 80 ° C

• Nominal health flow flow: 9–15 l/min (depends on the internal module)
